High-speed printing

Electro-Steering

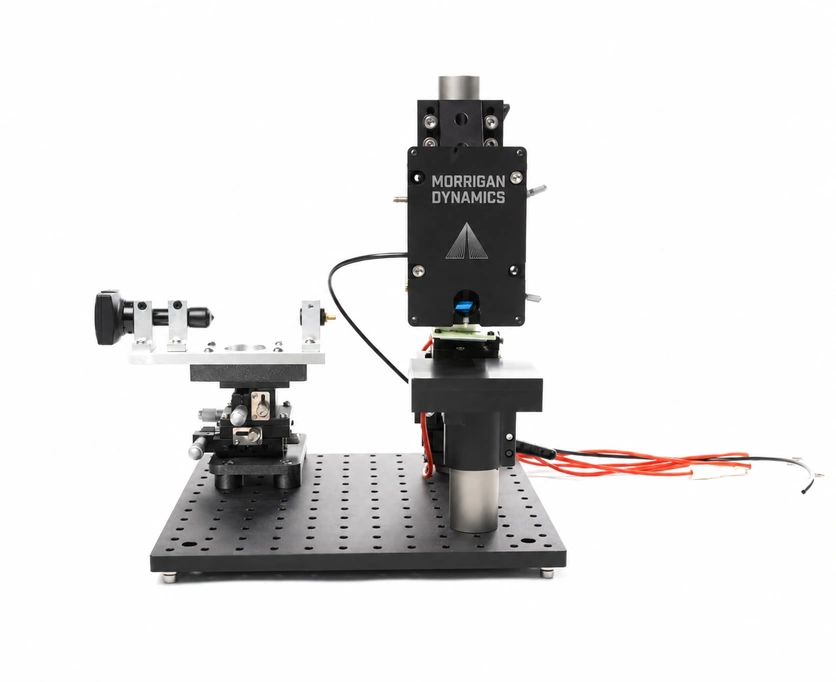

Name: Electro-Steering
Brand: Morrigan Dynamics

Electrostatically steer microdrops towards small targets with an ultra-high-speed printing system.

The revolutionary electro-steering technology from Polypico controls the trajectory of droplets in free space. The system can print 2D patterns at speeds which can be orders of magnitude faster than any traditional printers. The electro-steering system has been designed especially for small targets which need high positional placement accuracy, e.g.: TEM grids; micro-needle arrays; sensor chips; etc. Customisation is possible for larger footprint targets.

Discuss this system Explore features & specifications ↓

State-of-the-art electro-steering system high speed print system for small targets

Features & Benefits

Patented disposable dispensing cartridge technology

No cross-contamination by design, change fluids in a matter of minutes, no wastage of precious fluids, with a nozzle anti-clogging feature.

More about our disposable cartridges

Ultra-low volume dispensing

Single drop volumes can be programmed to be any volume in the range of 5pl to 120pl (contingent on well-engineered fluids).

Ultra-high speed 2D printing

Print 2D patterns at high speed with high placement accuracy and no moving parts. Print speeds dependent on target pattern complexity and required volume per deposition. For example, less than 4 seconds to print 200 discrete locations on a 10mm square target, with 2nl deposited per target.

Customisable

Custom configurations are possible to suite specific application requirements.

Ongoing software upgrades

Keep up to date with the latest features and capabilities.

1-year & extended warranties

Includes a 1-year parts and labour, return to factory warranty. Option to extend the warranty for 3 to 5-years also available.

Specifications

Positioning Accuracy

Application specific (fluid and substrate dependant) Typically +/-50µm

Speed

Application specific (fluid and target geometry dependant) Typically 5,000 drops deposited per second Up to 200 discrete locations dispensed onto per second

Dimensions

System enclosure 600mm x 600mm x 1500mm

Weight

Approx 30 kg

Enclosed

System enclosed

Working Print Area

Standard 10mm x 10mm (Customisable)

Applications & Materials

Proven to deliver for a wide range of applications and materials, including:

Microarrays

Transmission Electron Microscope grids

Sensor technology

Micro-needles

Active Pharmaceutical Ingredients

Proteins / Antibodies

Vaccines

DNA / RNA

Protein microcrystals

Nano-materials

Accessories

Additions, upgrades and replacement parts.

A wide range of accessories including cameras, dispensing cartridges, dispensing heads and more.

Product Range

Off-the-shelf, customised and OEM solutions.

Pick an off-the-shelf micro spotter or collaborate with our team of dispensing specialists to get the ideal solution for your application.
