Integrate microdispensing technology into your own instrument or research platform.

Our OEM microdispensing solution is designed for research applications and for users who want to integrate a microdispensing head into their products. The solution comes with a Windows-based software interface, allowing control of the dispensing process either directly by the end user or via another software program. Additionally, the OEM system supports external triggering through a TTL impulse.

Discuss this system Explore features & specifications ↓

Integration of OEM for advanced manufacturing.

The system can also be equipped with a Drop-Watch Camera for microdrop calibration and visualization.

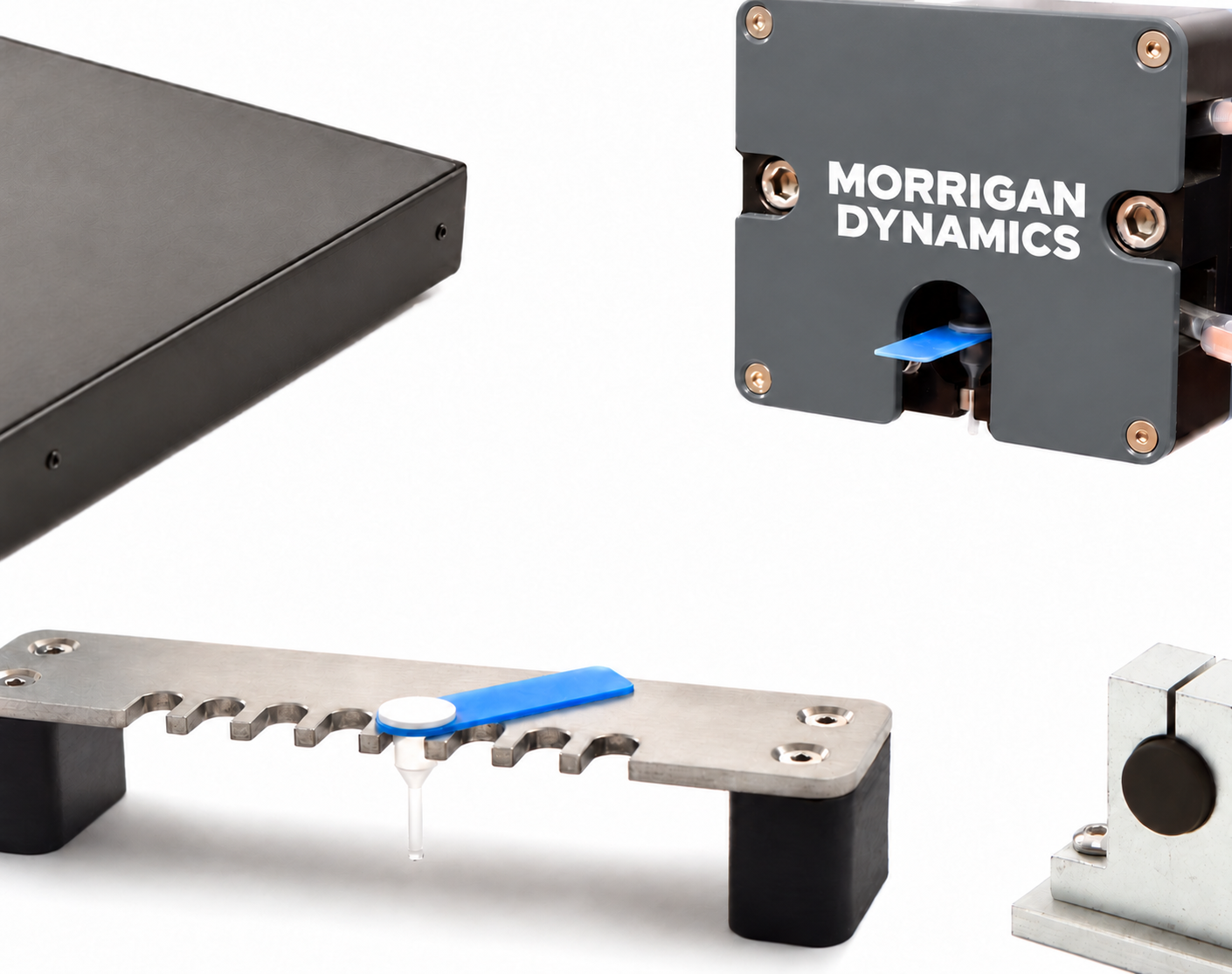

Kit Components

Basic Setup

The adjacent image shows the basic configuration of the OEM microdispensing system. A 24V DC supply powers the Electronic Control Module (ECM), which communicates with the host PC via RS232, USB, or an embedded system. The dispensing head connects to the ECM through electrical and pneumatic interfaces. Users can also install an optional Drop-Watch Camera for added functionality.

The Electronic Control Module also includes an optional external trigger input.

Electronic Control Module

The system features a robust construction designed for a long operational life of over 10 years. The Electronic Control Module is easy to install and offers optional USB or RS232 connections to the host PC, along with an optional external trigger input.

Trigger Input Specifications:

Type: TTL Voltage (3.5V high / 0.8V low threshold)

Connector: BNC

Frequency Range: 0 to 48 kHz

Dispensing Head

Single droplet volume range: 20pL – 120pL (pico-nano-microlitre volumes using multiple droplets)

High droplet volume accuracy : 2% C.V.

Dispensable fluid viscosity : [0 – 60]cPs

Maximum frequency : 10,000Hz (drops/second)

Drop-watch camera for droplet calibration and analysis

Drop Watch Camera System

Camera: Monochrome, USB 2.0

Lens: 40mm working distance

Illumination: LED source

Cabling

Cable types include:

Coaxial cable 50 Ω

RS232 or USB

SMA cable 50 Ω

PC Software

Calibrate : Calibration of drop volume, frequency and more

Settings : Edit parameters related to the control system

Dispensing Cartridge Starter Pack

15 cartridges : 5 of 50µm, 5 of 70µm, 5 of 100µm (orifice diameters)

Cartridge holder (filling bridge)

Suction cup for use with a pipette for cartridge filling

Product Range

Off-the-shelf, customised and OEM solutions.

Pick an off-the-shelf microdispensing system or collaborate with our team of dispensing specialists to get the ideal solution for your application.

Explore the portfolio.

View all products ↗
